Industrial Continuous Surface Preparation Systems
Engineered in Singapore with precision assembly under Industry 4.0 standards. Built to satisfy stringent European Machinery Directives, Nadcap process requirements, and AMS aerospace criteria.
Process Lab Testing & Processing
Almen saturation analysis, coverage validation, and parameter design testing.

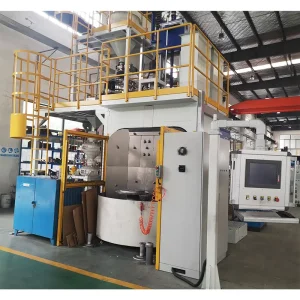

Famous KOSHIN Experiment Services, Lab Testing, and Contract Processing Suppliers, Company
Aerospace Peen Forming
Dieless aerodynamic contouring with multi-axis closed-loop CNC control.
Buy KOSHIN Peen Forming Machine for Aerospace Wing Skin Panels Factory, Companies
Microsphere Peening
Micro-ceramic and glass peening for ultra-low roughness and precision micro-fatigue.
Best KOSHIN Microsphere Peening Machine Manufacturers, Products
Robotic Shot Peening Cell
Automated 6-axis robotic articulation designed for aerospace blades, gears, and discs.
OEM KOSHIN Robotic Shot Peening Machine for Aerospace & Automotive Parts Manufacturers, Quotes
Continuous Automatic Blaster
CE-marked high-throughput automated grit blaster for profile generation and descaling.
CE Certification KOSHIN Automatic Sand Blasting Machine Suppliers, Companies
Wet Shot Peening System
Dust-free slurry peening eliminating sub-surface embedding in precision alloys.
OEM KOSHIN Wet Shot Peening Machine for Precision Metal Parts Factory, Product
Automated Waxing & Coating
Precision robotic masking and chemical protective barrier application system.
OEM KOSHIN Automatic Waxing and Motocoat Station Company, Product
Aerospace Landing Gear Cell
Heavy-duty continuous shaft, structural case, and landing-gear blast system.
Best KOSHIN Aerospace Sand Blasting Solution for Shafts, Landing Gears, and Cases Supplier, SuppliersContinuous Shot Blast Engineering: Mechanics & CE Governance
Modern industrial manufacturing demands non-stop surface finishing with tight structural integrity. Unlike batch tumble blast machines, continuous pass-through blast systems eliminate batch downtime while guaranteeing identical kinetic impact parameters across every square millimeter of structural metal.
Direct-Drive Blast Turbines
Equipped with magnetic dynamic variable-frequency turbines reaching up to 3,600 RPM. Precision curved-blade impellers output media velocities between 60 to 95 m/s, yielding higher mechanical stripping efficiency while lowering specific power draw (kWh/ton) by 24% compared to conventional belt-driven blast wheels.
Cascade Air-Wash Separation
Multi-tier cascade separation segregates functional round shot from sub-size fractured fines, rust debris, and microscopic particulate dust. Closed-circuit classification preserves operational media working mix distribution within ±3.5%, directly preventing premature nozzle erosion and erratic surface profile depths.
Heavy-Duty Mn13 Chamber Liners
Blast enclosures are protected by interlocking hot-rolled 12-14% manganese austenitic alloy steel shields (Mn13 / Hadfield Steel). Under constant impact, surface work-hardening elevates protective hardness from 200 HB up to 550 HB without embrittlement, delivering service longevity beyond 25,000 continuous hours.
Continuous Shot Blast Machine Quotes & Engineering Pricelist
System pricing hinges on conveyor design (roller conveyor, overhead monorail, mesh belt, or rotary catenary), blast wheel kW power, automated dust collection rating, and Industry 4.0 data logging configurations. Below is an indicative budgetary index for CE-certified continuous production lines.
| Equipment Category | Pass-Through Envelope | Blast Wheels (kW) | Throughput Velocity | Budgetary Range (FOB/CIF) | Target Industrial Use |
|---|---|---|---|---|---|
| Continuous Roller Conveyor Heavy Plate / H-Beams |
1000mm × 500mm to 2500mm × 800mm | 4 - 8 × 11kW - 22kW | 0.8 – 3.5 m/min | $45,000 – $135,000 | Steel fabrication, structural beam descaling, pre-weld rust stripping |
| Continuous Wire Mesh Belt Continuous Flat Parts |
600mm × 300mm to 1200mm × 400mm | 4 - 6 × 7.5kW - 15kW | 0.5 – 2.5 m/min | $38,000 – $98,000 | Aluminium die-casting, automotive transmission brackets, non-impact parts |
| Continuous Monorail / Overhead Complex Hanging Parts |
Dia 800mm × H 1500mm to Dia 1500mm × H 2500mm | 3 - 6 × 11kW - 18.5kW | Stepless Indexing / 0.5-2 m/min | $52,000 – $145,000 | Agricultural machinery cast frames, forged knuckles, tractor bogies |
| Continuous Rotary Barrel / Drum Bulk Hardware Fasteners |
Drum Dia 800mm – 1400mm | 2 - 4 × 15kW - 30kW | Up to 15 Metric Tons / Hour | $65,000 – $180,000 | Hot forged hardware, railway fasteners, chain links, brass & ductile iron |
| Aerospace Continuous Peener AMS 2432 / Nadcap |
Custom Tailored Geometric Cells | Robotic Nozzles / Closed Loop Servo | Programmable Recipe Feed | $180,000 – $480,000 | Turbine components, rotating shafts, critical landing gear segments |
*Final quotation depends on customer electrical code (e.g., UL 508A, CE EN 60204-1), acoustic attenuation enclosure specs, and integrated abrasive media recycling grades.
China Factory 4.0: Supply Chain Resilience & Velocity
Through the dual-engine integration of Singaporean system architecture and advanced Chinese manufacturing clusters, KOSHIN removes traditional equipment production bottlenecks. We provide Tier-1 clients with unrivaled delivery schedules, rigorous ISO 9001/CE quality governance, and structural cost optimizations.
End-to-End Vertical Manufacturing
From laser plate cutouts and robotic welding of 16mm pressure-containment blast enclosures to dynamic balancing of high-speed turbine shafts, over 88% of manufacturing is kept in-house. This cuts subcontract overhead, ensures structural tightness, and eliminates production lead time delays.
Raw Material Sourcing Advantage
Direct proximity to premier metallurgical clusters ensures immediate access to certified high-manganese casting alloys, high-density alloy shot (SAE J827 / AMS 2431), and premium wear-resistant polyurethanes. Buyers benefit from a 30-40% direct reduction in capital expenditure without cutting corner on wall thickness or weld tolerances.
Compressed Delivery Timeline
Standard modular continuous blast cabinets transition from structural engineering sign-off to full factory testing run-off in just 6 to 9 weeks. In comparison, legacy North American and European manufacturers quote 24 to 36 weeks, saving global procurement managers months of time-to-market delay.
Sector Solutions: Precision Profiling to Heavy Descaling
Surface integrity criteria differ across mission-critical industries. Our continuous blast machines adjust blast intensity, impingement angles, feed rates, and recovery separation automatically according to the target alloy's metallurgical profile.
Aerospace & Gas Turbines
Conforms to AMS 2430 / AMS 2432 guidelines for computer-controlled continuous peening. Induces engineered compressive residual stress layers deep within turbine blades, discs, and landing-gear axles to arrest micro-crack formation, preventing stress corrosion cracking and dramatically extending cycle life under cyclic mechanical loading.
Automotive & EV Propulsion
High-speed, unassisted cleaning of cast aluminum battery tray chassis, transmission drive pinions, and leaf springs. Uniform impingement removes microscopic parting lines and flash while imparting an optimal surface profile (Ra 3.2 – 6.3 μm), providing anchoring strength for adhesive bonds, vulcanized rubbers, and anti-corrosive coatings.
Heavy Infrastructure & Steel Works
Continuous pass-through roller systems clean structural H-beams, bridge trusses, and boiler tubes at velocities up to 3.5 m/min. Instantly reaches ISO 8501-1 Sa 2.5 and Sa 3.0 white metal purity standards, stripping tough mill scale and rust blooms before automated prime painting and structural fabrication.
Technology Roadmap: AIoT, Machine Vision & Zero Emissions
The continuous blast machine is moving beyond simple mechanical abrasive throwers into a fully digitized, smart industrial node. KOSHIN's technology roadmap focuses on predictive machine intelligence, closed-loop media balancing, and strict environmental compliance.
AI-Driven Blade Wear Monitoring
Integrated multi-axis triaxial vibration accelerometers and thermal sensors continually track turbine balance and bearing loads. Machine-learning algorithms analyze mechanical acoustic resonance anomalies to forecast blast wheel blade wear days before hot-spot degradation or mechanical fatigue failure occurs.
Vision Coverage Verification
High-speed optical camera arrays scanning pass-through exits evaluate blast coverage ratios in real-time. The image analytics software detects uncleaned shadowed areas or excessive hot-spot concentrations instantly, automatically modulating the conveyor drive speed or turbine RPM without requiring operator intervention.
Near-Zero VOC & Dust Capture
Modern continuous systems feature PTFE-coated anti-static nanofiber cartridge filters coupled with variable-frequency pulse-jet cleaning systems. Particulate emissions are maintained below 1.5 mg/Nm³, easily surpassing EU Clean Air and OSHA directives, while reclaimed clean air can be directly recirculated back onto the factory floor.
CE Certification & International Safety Directives
Deploying industrial shot blasting equipment within the European Economic Area (EEA), the UK (UKCA), or North America requires verifiable conformity to rigorous statutory safety frameworks. KOSHIN systems are engineered, validated, and documented from the ground up for total turnkey audit compliance.
2006/42/EC Machinery
Compliant with EN ISO 12100 risk mitigation. Features dual-channel category 4 PLe safety interlocking door switches, pneumatic mechanical shaft drop arrestors, and emergency trip cords along the entire length of the conveyor.
2014/35/EU Low Voltage
Designed to EN 60204-1 industrial machinery standards. IP55/NEMA 12 rated control panels, segregated AC motor drives and low-voltage DC communication logic, integrated thermal circuit protection, and color-coded labeled wiring harnesses.
ATEX 2014/34/EU Explosion
Essential when processing aluminum, titanium, or reactive alloys. Complete with explosion relief rupture panels, anti-static grounding combs, spark detection infrared sensors, and rapid chemical isolation extinguishing barriers.
Acoustic & Dust Mandates
Keeps continuous perimeter noise levels below 78 dB(A) via thick composite sound-dampening acoustic enclosures. Integrated differential pressure sensors continuously verify collector filter integrity to satisfy local emissions limits.
Frequently Asked Questions: Continuous Blast Machines
Clear technical insights from our Singapore engineering group to help plant engineers, procurement leads, and quality directors make informed machinery specifications.
How does continuous shot blasting differ from batch tumble blast systems?
Batch tumble systems require regular operator loading, cycle shutdowns, and manual discharging, which creates processing bottlenecks and can damage delicate parts through inter-part collisions. Continuous pass-through systems automatically move parts through the blast stream on roller lines, mesh conveyors, or monorails at consistent speeds. This eliminates parts bumping together, stabilizes surface finishes, and integrates directly with upstream casting or downstream automated coating lines.
What specific engineering documentation is provided for CE Certification?
Every CE-marked continuous blast unit is delivered with a complete Technical Construction File (TCF). This dossier includes an EU Declaration of Conformity (DoC), EN ISO 12100 risk analysis reports, complete EN 60204-1 electrical schematics, pneumatic flow diagrams, certified pressure vessel documentation for air receivers, sound survey maps, and comprehensive operations and preventive maintenance manuals in the buyer's official national language.
What key metrics must buyers specify when requesting an accurate quotation?
To provide an accurate technical bid and pricelist, our engineering team needs: maximum workpiece dimensions (length × width × height) and weight profiles; raw material alloy (carbon steel, ductile iron, aluminum); initial surface condition (mill scale, foundry sand, heavy rust); target finish clean level (ISO 8501-1 Sa 2.5 / Sa 3.0 or Ra values); desired conveyor line velocity (m/min or tons/hour); electrical supply specs (e.g., 400V 50Hz / 480V 60Hz); and any site space or height limitations.
How does continuous shot blasting differ from precision shot peening?
Shot blasting is a cleaning and profiling process designed to strip scale, remove rust, and generate mechanical anchoring profiles verified visually or by surface roughness meters. Controlled shot peening is a metallurgical cold-working process that imparts a reliable compressive residual stress layer to extend fatigue life under cyclic loads. Shot peening requires strict closed-loop flow control, servo speed stability, Almen strip validation, and rigorous AMS 2432 / Nadcap audit tracking.
What is the typical working lifespan of blast wheel blades and chamber liners?
Using standard round carbon steel shot (e.g., S280/S330 at 45-50 HRC), our high-chromium cast alloy blades (Cr27) average 800 to 1,200 operating hours. Blast wheel directional control cages and distribution impellers run 1,500 to 2,000 hours. The primary blast enclosure's thick 12-14% manganese steel (Mn13) liners work-harden under media impacts, delivering reliable protection for 15,000 to over 25,000 continuous operating hours before replacement is required.
How are overseas machine commissioning and operator training supported?
KOSHIN coordinates field engineering teams across Europe, North America, and the Asia-Pacific region via our Singapore headquarters. We support complete on-site mechanical erection, electrical cabling hookup, commissioning, and media charge-up, followed by formal Factory Site Acceptance Testing (SAT). In parallel, our field service specialists conduct hands-on training for plant operators covering HMI recipe setups, mechanical maintenance routines, and safety protocol verifications.
